The Whole
catalogue.

Every consumable, every machine, every tread pattern needed to run a retread shop. Drawn from our domestic catalogue and organized for the way operators actually work.

Consumables Machinery Radial Treads Bias Treads LCV Treads Envelopes
01 / Consumables

Daily-use
essentials.

The five consumables every retread shop runs through. Stocked in shop-friendly pack sizes and engineered to precured spec.

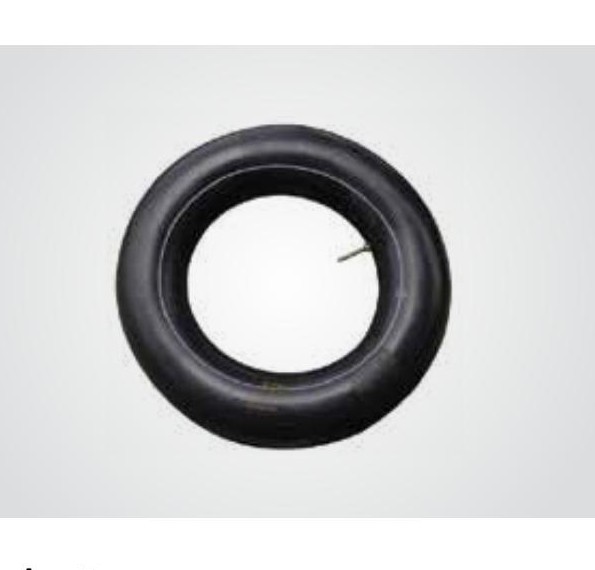

Curing Bags

Curing Bags

High-quality, heat-resistant curing bags featuring a curved-in valve for reliable seating during autoclave cycles.

// Heat resistant · Curved valve

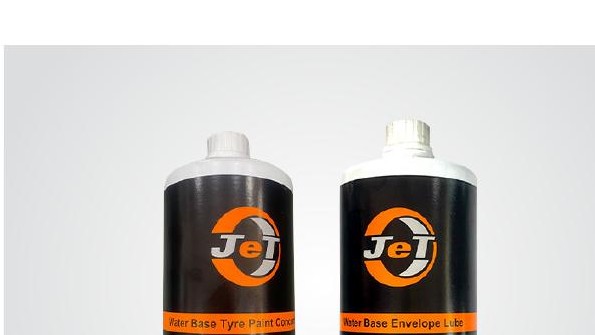

Tyre Paint

Tyre Paint

Water-based concentrate compatible with the tyre. Restores appearance and finishes the retread with a clean, consistent face.

// Water-based · Tyre-safe
Envelope Lube

Envelope Lube

Eases the envelope into tread grooves, prevents bonding gum sticking at the shoulder, and makes envelope removal painless.

// Easy slip · No sticking

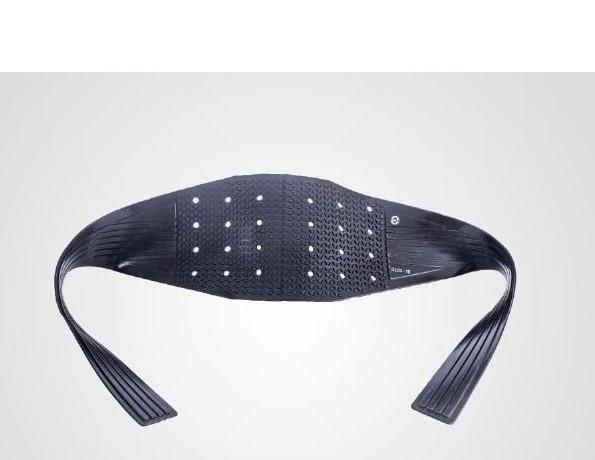

Wicking Pad

Wicking Pad

High-elasticity compound that eliminates tread performance loss. More durable than cloth wick pads and reusable across cycles.

// Reusable · Thermal stable

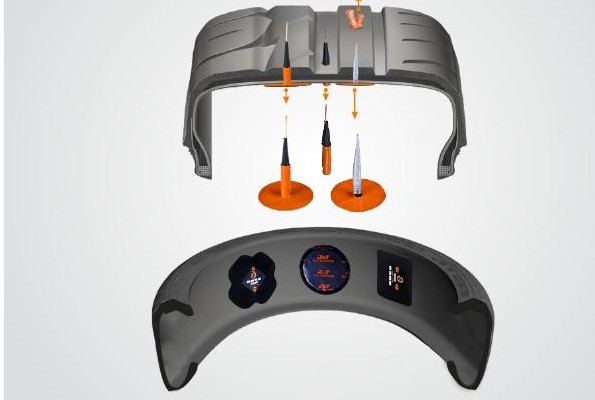

Repair Units

Repair Units

Special-compound, reinforced repair units engineered for superior flex, heat resistance, and optimum adhesion to the casing.

// Reinforced · Heat resistant

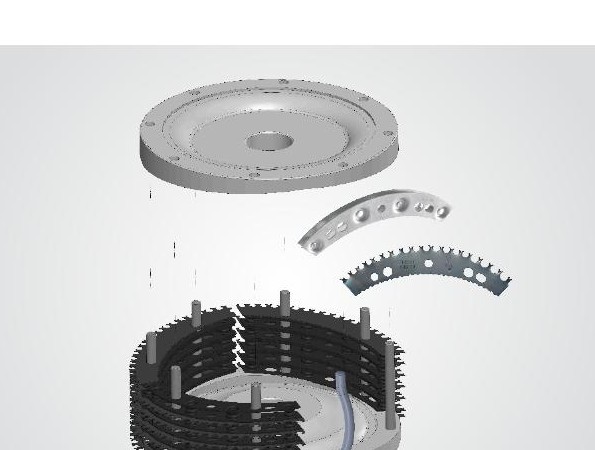

Rasps & Buffing Blades

Rasps & Buffing Blades

Unmatched texture, lowest cost per buff, and runs cooler than most competing systems. Built for daily heavy-duty buffing.

// Cool running · Low cost / buff

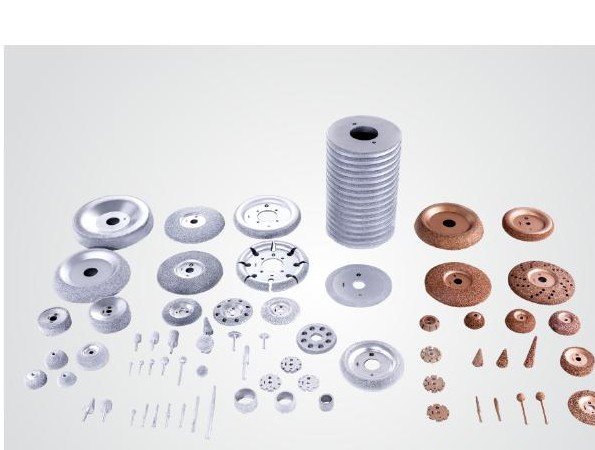

Carbides

Carbides

Wide range of carbides for tyre and tube repair. The abrasive on the buffing wheel, used to obtain a smooth surface.

// Wide range · Abrasive grade

Need a custom kit?

We bundle consumables to match shop volume and tyre mix. Tell us your throughput and we'll build a quarterly supply plan.

// Request bundle →
02 / Machinery

Retreading
shop kit.

Loading, transport, and tread prep — three machines that move the heavy work off your operators and into a controlled process.

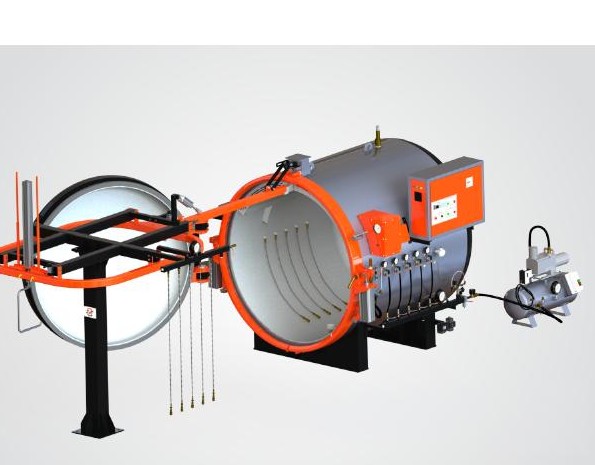

Autoclave Loading System
Loading System

Autoclave Loading System

  • Reduces loading time
  • Reduces operator fatigue
  • 100% pneumatic
  • Increases retreads per day

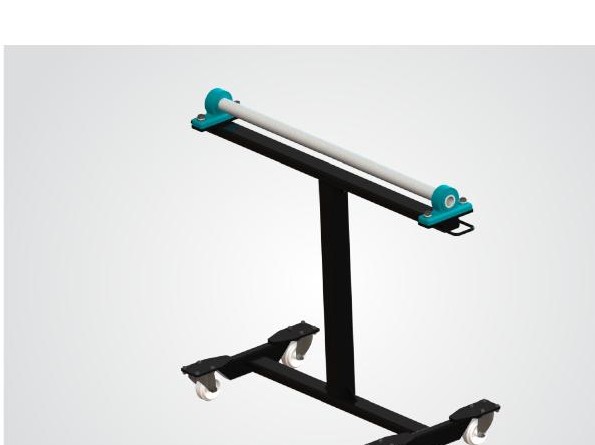

Trolley
Transport

Trolley

  • Heavy-duty swivel caster wheels
  • Dual use: transport & cementing
  • Stable platform for any tyre size
  • Built for shop floor abuse

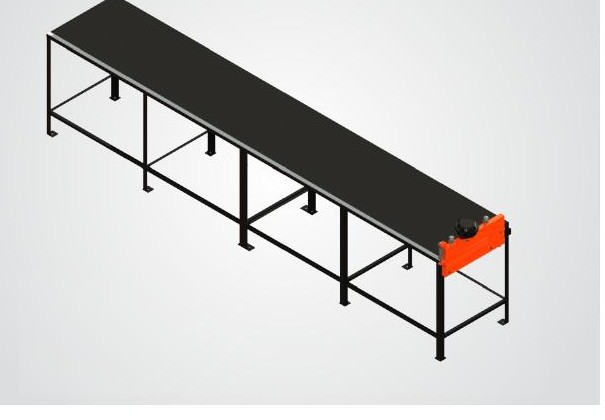

Tread Preparation Table
Prep

Tread Preparation Table

  • Built-in scale for tread length
  • Mounted tread cutter
  • Quick & clean cuts
  • Accurate measurement every run
03 / Truck & Bus Radial

Radial
tread patterns.

All-wheel and drive patterns for radial casings on truck & bus duty. Each tread spec'd for width, NSD, length, and average belt weight.

All-Wheel · Truck & Bus Radial

EM
Standard
Speciality

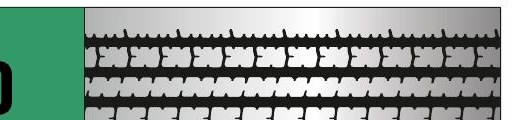

TR250
TR250 tread pattern
EM Class · All-Wheel
Sizes10.00R20
295/80R22.5
Width220–230
NSD14.5
Length3250

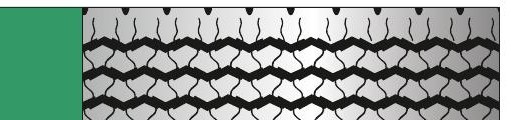

TZA1
TZA1 tread pattern
EM Class · All-Wheel
Sizes8.25R20
295/80R22.5
Width180–260
NSD15
Length3000–3400
TZA2
TZA2 tread pattern
Standard · All-Wheel
Sizes10.00R20
11R22.5 · 12.00R20
Width210–240
NSD15
Length3250–3400
TZA2 L
TZA2 L tread pattern
EM Class · All-Wheel
Sizes10.00R20
295/80R22.5
Width220–260
NSD12
Length3250

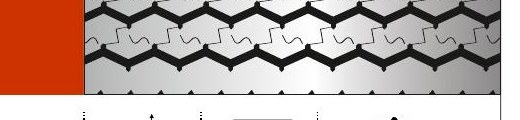

TZE
TZE tread pattern
Standard · All-Wheel
Sizes8.25R20
9.00R20 · 10.00R20
Width190–210
NSD13
Length3000–3250

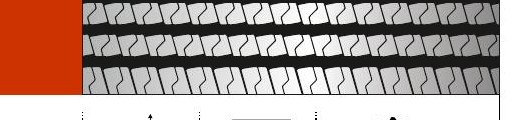

TZE2
TZE2 tread pattern
Standard · All-Wheel
Sizes10.00R20
11R22.5 · 12.00R20
Width210–250
NSD15
Length3250–3400
04 / Truck & Bus Bias

Bias
tread patterns.

Drive-wheel patterns engineered for bias casings. Built for traction and abuse on mixed road surfaces.

Drive-Wheel · Bias

EM
Standard
Speciality

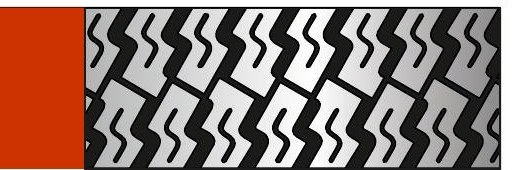

BDR1
BDR1 tread pattern
Standard · Drive
Sizes10.00–20
295/95 D 20
Width210
NSD16
Length3250

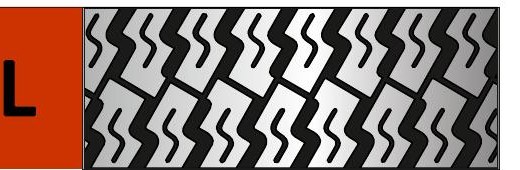

BDR1 L
BDR1 L tread pattern
Standard · Drive
Sizes10.00–20
295/95 D 20
Width210
NSD14
Length3250

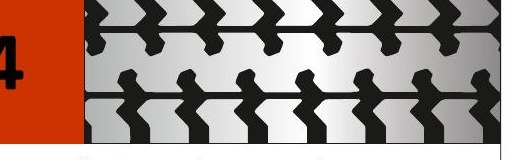

DFS04
DFS04 tread pattern
Standard · Drive
Sizes10.00 R 20
295/95 D 20
Width205–215
NSD14
Length3250

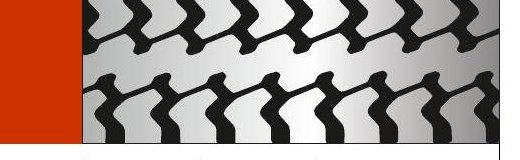

JT
JT tread pattern
Standard · Drive
Sizes7.50–20 · 8.25–20
9.00–20 · 10.00–20
Width170–215
NSD14–15
Length3000–3250

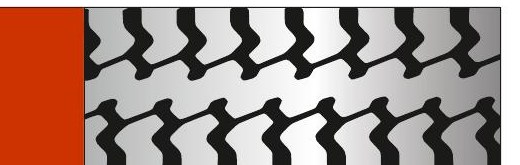

JT L
JT L tread pattern
Standard · Drive
Sizes8.25–20 · 10.00–20
295/95 D 20
Width185–205
NSD11
Length3000–3250

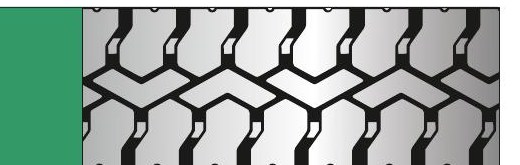

TCB
TCB tread pattern
EM Class · Drive
Sizes8.25–20
Width175
NSD14
Length3000
05 / LCV

Light commercial
vehicle treads.

Lower-load patterns sized for last-mile and pickup duty. Lighter belt weights, faster turnaround in the shop.

LCV · Mixed Service

EM
Standard
Speciality

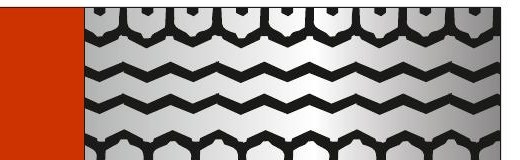

RT
RT tread pattern
Standard · LCV
Sizes195/80 R15
7.00–15 · 7.50–16
Width150–160
NSD11
Length2350–2480

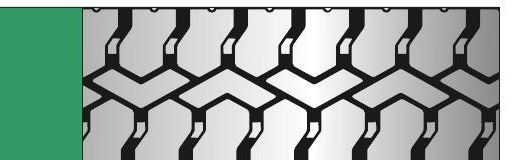

TCB
TCB tread pattern
EM Class · LCV
Sizes8.25–16
Width175
NSD14
Length2520

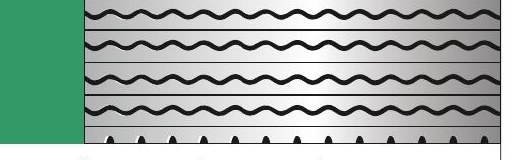

TSM
TSM tread pattern
EM Class · LCV
Sizes7.50–16
8.25–16
Width160–180
NSD11–13.5
Length2480–2620

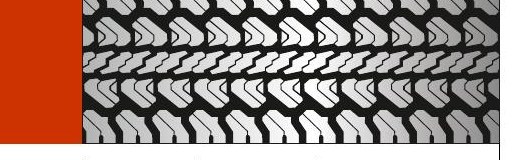

TTX
TTX tread pattern
Standard · LCV
Sizes215 R 15 · 215 R 14
205 R 15
Width170
NSD12
Length2200

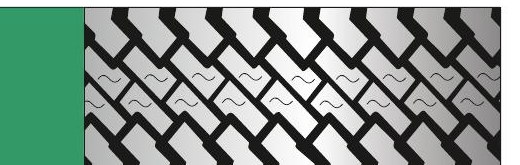

TZT
TZT tread pattern
Standard · LCV
Sizes7.00–15
7.50–16
Width150–160
NSD11
Length2350–2480

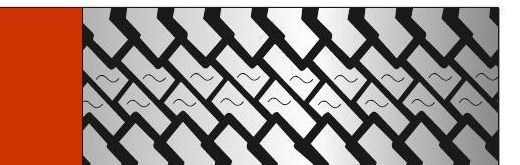

TZT1
TZT1 tread pattern
Standard · LCV
Sizes7.00–15
8.25R16 · 7.50–16
Width150–180
NSD12–14
Length2350–2620
06 / Envelopes

Outside
envelopes.

Two ranges to match every sealing system — Steam Bonder, Autoclave Rim & Bag, and Autoclave Flexseal/Snapseal — across all common tyre sizes.

Ultra Series

Ultra Envelopes

Premium grade for shops running high turnover. Tighter tolerances and longer service life across Steam Bonder and Autoclave systems.

3Sealing systems
30+Tyre sizes
14 to 24Inch range
Max Series

Max Envelopes

Workhorse range for everyday retread operations. The same fitment matrix as Ultra, tuned for cost-per-cycle on standard duty.

3Sealing systems
30+Tyre sizes
14 to 24Inch range

Don't see your size?
We probably stock it.

Ask us →
